FrSky Neuron 60 ESC

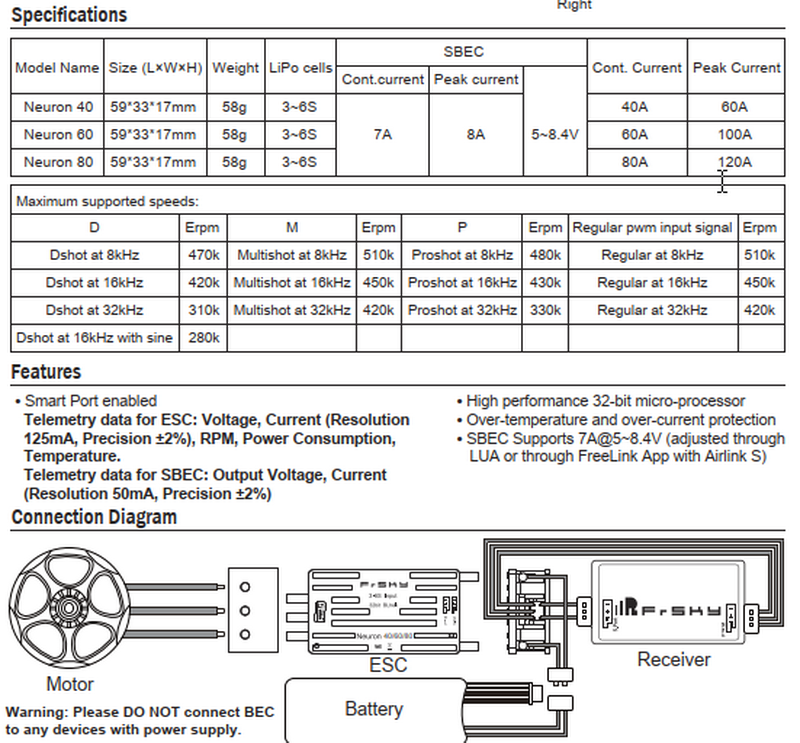

This unit has never been installed in a model. It is likely that I ran it on my testbench to set up the initial parameters. You can download the manual from the link above
Price:
£35.00
I bought this 60A ESC quite a few years ago. It is not the original production version as the power pin on the S.Port is not installed. Therefore it is unlikely to be so easy to let the smoke out as it had been with the initial production. In any event, I am including an appropriate 2-pin lead. This unit has never been installed in a model. Although I don't remember, I expect I would have set it up and run on my test bed at the time. The ESC's functions are set using BLHeli_32 software on a PC, Mac or Android device. There are many internet sources of information and guidance on this procedure.
A screenshot of the appropriate settings that I used on a same generation 80A unit is attached. Ignore the "Neuron 40" heading which appears whatever the unit actually is.
It is currently fitted with an XT90 battery connector and 4mm motor sockets which was my standard setup, using adaptors if required.
FrSky's Description:
The FrSky Neuron Series ESC is a professional grade control unit, integrated with built-in telemetry like high-precision current sensor, voltage sensor, motor RPM, power consumption and ESC temperature sensor. Features optional DShot signaling and an adjustable SBEC voltage, that can be changed via LUA script. The Neuron ESC is encased in a CNC aluminum protective shell which also aids in heat dissipation. As with most FrSky products, the Neuron series is completely S.Port compatible, allowing you to use our full line of S.Port Telemetry sensors.
